 Upset Forging | KT Forge

Steel Forging | Hot Forming | Cold Forming

We do
  1. Open Die, Hammer or Smith Forging
  2. Drop forging.(closed die)
  3. Press forging
  4. Upset forging
  5. Roll forging
  6. Swaging
Work With
  • All Steel Types including Carbon, Alloy and Stainless
  • Aluminum Silicon Bronze
  • Bronze
Worked for
  • Components for the Oil Related Industry
  • Automotive Industry
  • Transportation Industry
  • Ship Building Industry
  • Heavy Plant Engineering Industry
  • Vehicle Springs
  • Steel Works Equipment

Click image to enlarge
Worked On
  • Anti-Roll Bars
  • Automotive Leaf Springs
  • Box Tongs upto 12 inches
  • Bracket Work
  • Davit Arms
  • Engineering Parts and Repairs
  • Engineering Requirements - Bolts (Off Standard)
  • Forge Test Pieces
  • Heat Exchanger Fabrication
  • Jominy Test Pieces
  • Main Leafs for Locomotives
  • Open Die Forging
  • Prototypes and Small Production Runs
  • Shackles up to 40Kg
  • Special Hooks
  • Sporting Gun Parts (barrels - chop a lump)
  • Torsion Bars
  • more ...

Upset Forging

Our long list of clients include:
  • British Waterways
  • Bridon International
  • C F Booth Engineering Ltd
  • Europa Engineering
  • Firth Rixson Super Alloys
  • MAN Diesel Ltd
  • MBH Analytical Ltd
  • MSI Quality Forgings
  • National Railway Museum
  • National Railways
  • OutoKumpu Stainless Ltd
  • Rotherham Metropolitan Borough Council
  • Sheffield Hallam University
  • Tata Steels
  • Tinsley Bridge Ltd
  • Wavin Pipeline Services
  • William Cook
  • many more ...

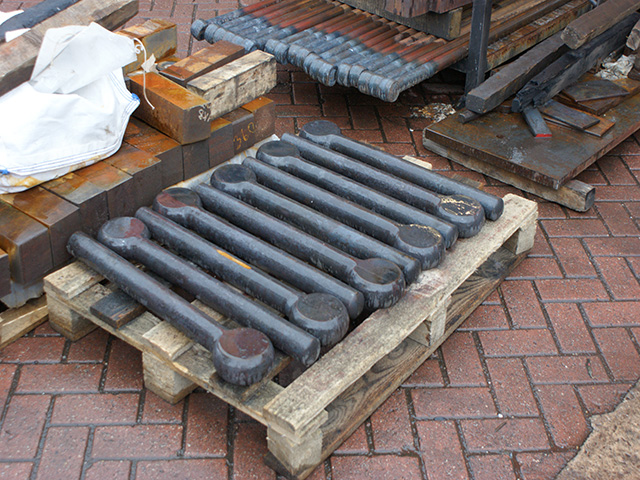

Upset forging increases the diameter of the workpiece by compressing its length. Based on number of pieces produced this is the most widely used forging process. A few examples of common parts produced using the upset forging process are engine valves, couplings, bolts, screws, and other fasteners.

Upset forging is usually done in special high-speed machines called crank presses, but upsetting can also be done in a vertical crank press or a hydraulic press. The machines are usually set up to work in the horizontal plane, to facilitate the quick exchange of workpieces from one station to the next. The initial workpiece is usually wire or rod, but some machines can accept bars up to 25 cm (9.8 in) in diameter and a capacity of over 1000 tons. The standard upsetting machine employs split dies that contain multiple cavities. The dies open enough to allow the workpiece to move from one cavity to the next; the dies then close and the heading tool, or ram, then moves longitudinally against the bar, upsetting it into the cavity. If all of the cavities are utilized on every cycle then a finished part will be produced with every cycle, which makes this process advantageous for mass production. These rules must be followed when designing parts to be upset forged:
